TEMPERATURE CONTROLS FOR
HOT RUNNER SYSTEMS

QHRC SERIES MAINFRAMES

The 12 Zone Mainframe is an individual frame section. The 24, 26, 48, and 72 Zone Mainframes use 2, 3, 4, or 6 frame sections rigidly fastened together into one prewired integral unit which requires only one main AC power connection. The 12 Zone Mainframe measures 22-18" wide x 12 deep x 6-3/4" high. Additional 12 Zone frame sections add 6-3/4" in height. Siren Alarm, Relay Output and Standby Input are all features of the QHRC Series Mainframes. QHRC controller module ordered seperately.

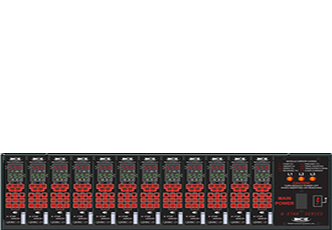

12 ZONE MAINFRAME

Part No. QMFHD-12M

Accessories Needed (1 each):

  • Power Cable (MPC12C10M/MPC12C20M)
  • TC Cable (TC12C10M/TC12C20M)
  • Terminal Box (PTC12TBM)
  • Power Connector (PIC12M)
  • TC Connector (MTC12)

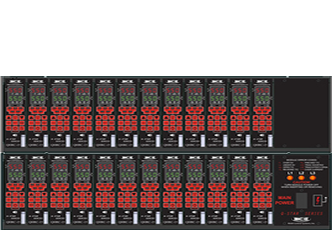

 24 ZONE MAINFRAME

Part No. QMFHD-24M

Accessories Needed (2 each):

  • Power Cable (MPC12C10M/MPC12C20M)
  • TC Cable (TC12C10M/TC12C20M)
  • Terminal Box (PTC12TBM)
  • Power Connector (PIC12M)
  • TC Connector (MTC12)

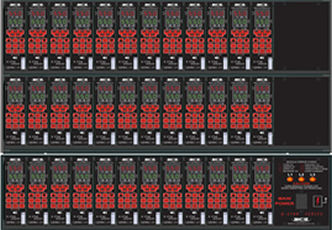

 36 ZONE MAINFRAME

Part No. QMFHD-36M

Accessories Needed (3 each):

  • Power Cable (MPC12C10M/MPC12C20M)
  • TC Cable (TC12C10M/TC12C20M)
  • Terminal Box (PTC12TBM)
  • Power Connector (PIC12M)
  • TC Connector (MTC12)

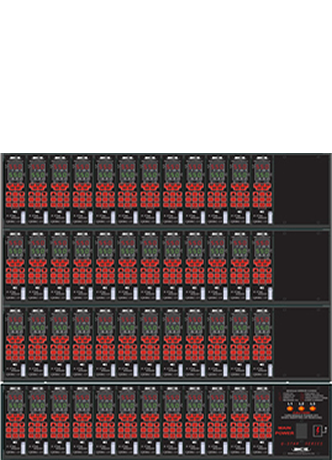

48 ZONE MAINFRAME

Part No. QMFHD-48M

Accessories Needed (4 each):

  • Power Cable (MPC12C10M/MPC12C20M)
  • TC Cable (TC12C10M/TC12C20M)
  • Terminal Box (PTC12TBM)
  • Power Connector (PIC12M)
  • TC Connector (MTC12)

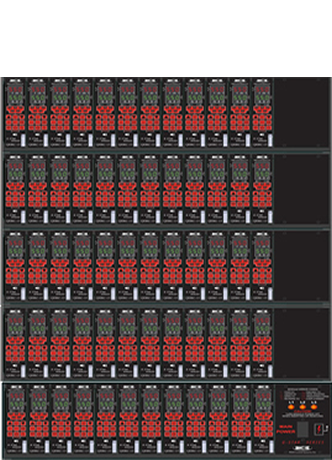

 60 ZONE MAINFRAME

Part No. QMFHD-60M

Accessories Needed (5 each):

  • Power Cable (MPC12C10M/MPC12C20M)
  • TC Cable (TC12C10M/TC12C20M)
  • Terminal Box (PTC12TBM)
  • Power Connector (PIC12M)
  • TC Connector (MTC12)

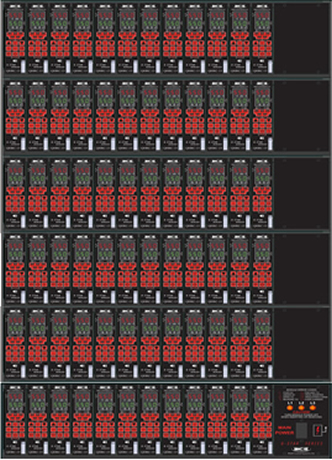

 72 ZONE MAINFRAME

Part No. QMFHD-72M

Accessories Needed (6 each):

  • Power Cable (MPC12C10M/MPC12C20M)
  • TC Cable (TC12C10M/TC12C20M)
  • Terminal Box (PTC12TBM)
  • Power Connector (PIC12M)
  • TC Connector (MTC12)
